Runtime Comparison of Critical Point Pairing Algorithms

This vignette compares the runtimes and memory allocations of the multi-pass and single-pass algorithms for pairing critical points. Several tidyverse packages are used to post-process the benchmark results:

library(rgph)
library(dplyr)
library(tidyr)
#> Warning: package 'tidyr' was built under R version 4.5.2
library(ggplot2)
#> Warning: package 'ggplot2' was built under R version 4.5.2

The running example

To illustrate, compare the results of the two algorithms on the running example from Tu &al (2018):

ex_file <- system.file("extdata", "running_example.txt", package = "rgph")
ex_reeb <- read_reeb_graph(ex_file)
( ex_multi <- reeb_graph_pairs(ex_reeb, method = "multi_pass") )
#> Reeb graph critical pairing (8 pairs):
#>  1 ( 0) •- ... -• 16 (15)
#>  2 ( 1) •- ... >-  3 ( 2)
#>  5 ( 4) •- ... >-  7 ( 6)
#>  8 ( 7) •- ... >- 11 (10)
#>  6 ( 5) -< ... >- 10 ( 9)
#>  4 ( 3) -< ... >- 12 (11)
#>  9 ( 8) -< ... >- 13 (12)
#> 14 (13) -< ... -• 15 (14)
( ex_single <- reeb_graph_pairs(ex_reeb, method = "single_pass") )
#> Reeb graph critical pairing (8 pairs):
#>  1 ( 0) •- ... -• 16 (15)
#>  2 ( 1) •- ... >-  3 ( 2)
#>  5 ( 4) •- ... >-  7 ( 6)
#>  8 ( 7) •- ... >- 11 (10)
#>  6 ( 5) -< ... >- 10 ( 9)
#>  4 ( 3) -< ... >- 12 (11)
#>  9 ( 8) -< ... >- 13 (12)
#> 14 (13) -< ... -• 15 (14)
all.equal(ex_multi, ex_single)
#> [1] "Attributes: < Component \"elapsed_time\": Mean relative difference: 0.6533532 >"
#> [2] "Attributes: < Component \"method\": 1 string mismatch >"

We expect the resulting data frames to be equivalent, but the output contains the attributes method and elapsed_time that we expect to be different. If we ignore attributes, then we find the results to agree:

all.equal(ex_multi, ex_single, check.attributes = FALSE)
#> [1] TRUE

For this reason, we omit the default check in the benchmarking run:

bench::mark(
  multi = reeb_graph_pairs(ex_reeb, method = "multi_pass"),
  single = reeb_graph_pairs(ex_reeb, method = "single_pass"),
  check = FALSE
)
#> # A tibble: 2 × 6
#>   expression      min   median `itr/sec` mem_alloc `gc/sec`
#>   <bch:expr> <bch:tm> <bch:tm>     <dbl> <bch:byt>    <dbl>
#> 1 multi         280µs    296µs     3165.    1.24KB     12.6
#> 2 single        255µs    276µs     3524.    1.24KB     14.7

The R bindings are equivalent; while total runtimes will be higher than when comparing the Java programs directly, the differences between them should be the same. Indeed, the allocated memory is exactly the same. However, the single-pass algorithm—Propagate and Pair—is a marginal improvement over the multiple-pass merge pairing algorithm.

A more complex case

The exported object flower is a reeb_graph constructed from the flower mesh, one of 12 from the AIM@SHAPE collection used by Tu &al to benchmark algorithms. Among them, it contains the most critical points, so it will better illustrate the difference between the algorithms in computationally intensive settings.

# print only a few edges for illustration
print(flower, n = 4)
#> Reeb graph with 325 vertices and 388 edges on [0,10]:
#>  65 (0.000000) -- 283 (1.237770)
#> 283 (1.237770) --  73 (2.475540)
#>  73 (2.475540) -- 240 (3.026665)
#> 240 (3.026665) --  64 (3.577791)
#> ...

However, this Reeb graph contains isolated vertices, which contribute no positive-persistent features to the output but must be dropped before calculation, lest they seize up the algorithms:

# print only a few pairs for illustration
print(reeb_graph_pairs(flower, method = "multi_pass"), n = 4)
#> Note: 87 isolated vertices were dropped.
#> Reeb graph critical pairing (200 pairs):
#>  65 (0.000000) •- ... -• 66 (10.000000)
#>  73 (2.475540) -< ... >- 64 ( 3.577791)
#> 188 (3.776078) -< ... >- 48 ( 3.824975)
#> 144 (3.812326) -< ... >- 94 ( 3.872892)

So that the benchmark results are more reflective of the algorithms’ requirements, we manually drop these points first:

flower <- rgph:::drop_reeb_graph_points(flower)
#> Note: 87 isolated vertices were dropped.
bench::mark(
  multi = reeb_graph_pairs(flower, method = "multi_pass"),
  single = reeb_graph_pairs(flower, method = "single_pass"),
  check = FALSE
)
#> # A tibble: 2 × 6
#>   expression      min   median `itr/sec` mem_alloc `gc/sec`
#>   <bch:expr> <bch:tm> <bch:tm>     <dbl> <bch:byt>    <dbl>
#> 1 multi         4.7ms   4.91ms     197.     52.8KB     2.03
#> 2 single         13ms  16.89ms      62.8    52.8KB     0

For this Reeb graph, Propagate and Pair outperforms the multi-pass algorithm by roughly a factor of 3.

How performance and improvement scale

Finally, we compare how both algorithms scale. Vertex and edge data are provided for three random merge tree Reeb graphs on an exponential size scale. These are converted to split trees by negating the vertex values and benchmarked separately before being stacked. (Note that the single-pass algorithm was found superior to the multi-pass algorithm on split trees but inferior on merge trees.)

# collect split tree Reeb graphs
tree_files <- vapply(
  c(
    `10` = "10_tree_iterations.txt",
    `100` = "100_tree_iterations.txt",
    `1000` = "1000_tree_iterations.txt"
  ),
  function(f) system.file("extdata", f, package = "rgph"),
  ""
)
tree_reebs <- lapply(tree_files, read_reeb_graph)
tree_reebs <- lapply(tree_reebs, function(rg) { rg$values <- -rg$values; rg })
# aggregate benchmark comparisons
tree_bench <- tibble()
for (i in seq_along(tree_reebs)) {
  bm <- bench::mark(
    multi = reeb_graph_pairs(tree_reebs[[i]], method = "multi_pass"),
    single = reeb_graph_pairs(tree_reebs[[i]], method = "single_pass"),
    check = FALSE
  )
  bm <- transmute(
    bm,
    method = as.character(expression),
    n_itr, time, memory
  )
  bm <- relocate(mutate(bm, size = as.integer(names(tree_files)[[i]])), size)
  tree_bench <- bind_rows(tree_bench, bm)
}

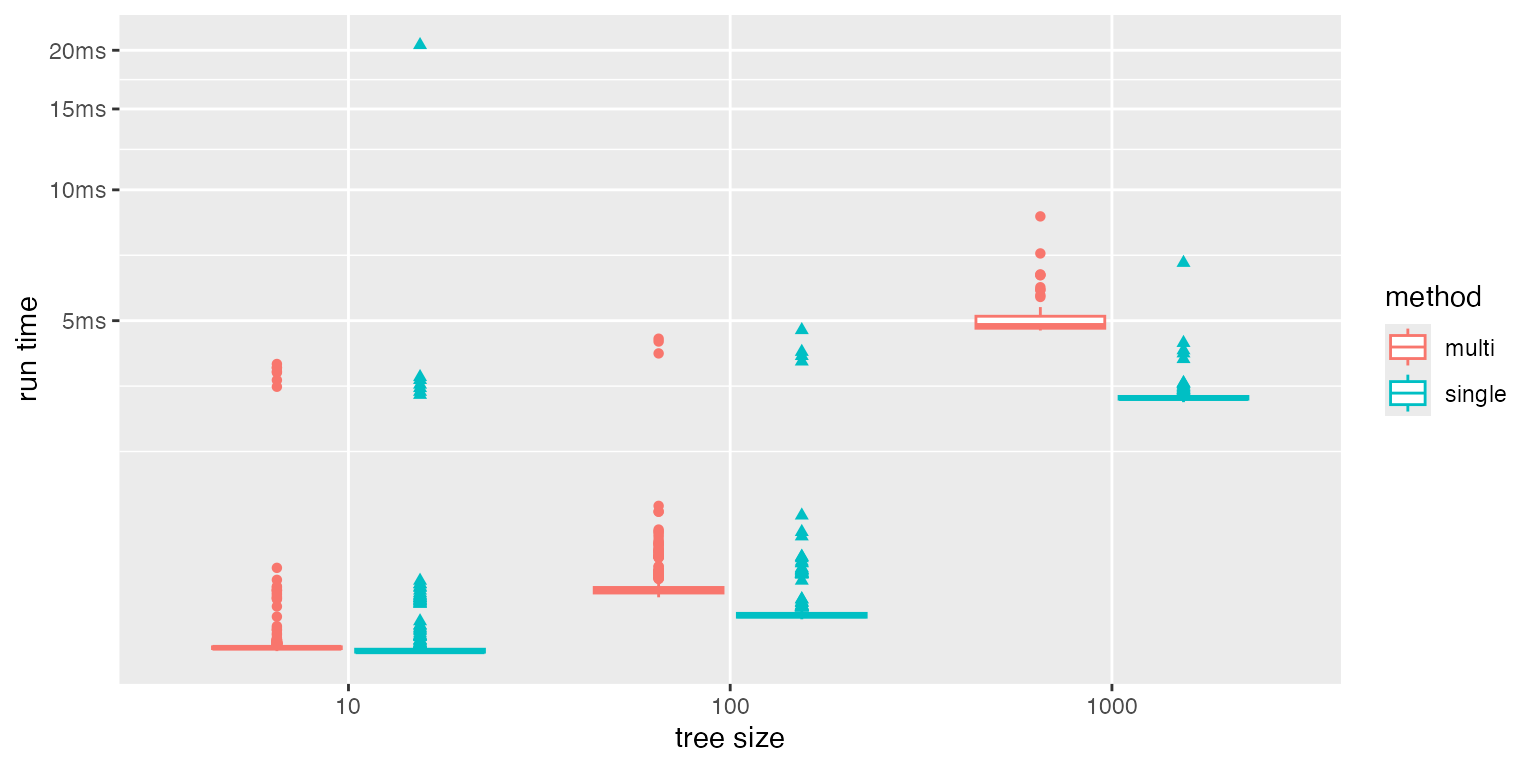

By plotting all of the run times from each of the benchmarks, we can visualize both the differences in runtimes between the algorithms and the variability in those runtimes.

# plot runtime results
tree_bench %>%
  select(size, method, time) %>%
  unnest(time) %>%
  ggplot(aes(x = as.factor(size), y = time * 1e3)) +
  geom_boxplot(aes(color = method, shape = method)) +
  scale_y_continuous(
    transform = "log1p",
    labels = scales::label_number(suffix = "ms")
  ) +
  labs(x = "tree size", y = "run time")

The single-pass advantage appears to grow with size. The ratio of medians quantifies this:

tree_bench %>%
  transmute(size, method, median = vapply(time, median, 0.)) %>%
  pivot_wider(id_cols = size, names_from = method, values_from = median) %>%
  transmute(size, ratio = single / multi)
#> # A tibble: 3 × 2
#>    size ratio
#>   <int> <dbl>
#> 1    10 0.933
#> 2   100 0.737
#> 3  1000 0.657
